Used Equipment For Sale

MINI LOADER SK800

Key: 1071671#0312
Manufacturer: DITCH WITCH
Model: SK800
Year: 2021
Hours: 1,066
Sale Price: $22,000.00
Comments:

SPECIFICATIONS
Ditch Witch
SK800
DIMENSIONS
Operating height, max std. bucket 105 in 2.67 m
Hinge pin height, max 83 in 2.10 m
Overall height of machine 57 in 1.45 m
Overall length of machine, std. bucket 105 in 2.67 m
Overall length of loader, no attachment 86 in 2.19 m
Wheelbase/track length 43 in 1.09 m
Machine width
Max, w/9-in (230-mm) tracks 42 in 107 cm
Min, w/7-in (180-mm) tracks 36 in 91 cm
Ground clearance, min
Center 8.9 in 226 mm
Side 3.7 in 94 mm
PERFORMANCE
Ground drive speed
Forward/reverse 4.3 mph 6.9 km/h
Ground pressure
7-in (180-mm) tracks 5.2 psi 0.36 bar
9-in (230-mm) tracks 4.3 psi 0.29 bar
Angle of departure 27
Tipping capacity 2,605 lb 1182 kg
Rated operating capacity (35% of tipping capacity) 911 lb 413 kg
Machine weight (no attachment, fluids full) 2,920 lb 1324 kg
HYDRAULIC SYSTEM
Auxiliary circuit, double gear pump
Flow rate 12 gpm 45.4 l/min
Pressure 3,000 psi 207 bar
POWER U.S. METRIC
Engine Kubota D1105
Fuel Diesel
Number of cylinders 3
Displacement 68.5 in3 1.12 L
Bore 3.07 in 78 mm
Stroke 3.09 in 78.4 mm
Gross power rating (SAE J1995) 24.8 hp 18.5 kW
Rated speed 3,000 rpm
Emissions compliance EPA Tier 4
FLUID CAPACITIES
Hydraulic reservoir capacity 9.2 gal 35 L
Engine oil, w/filter 5 qt 4.7 L
Fuel tank capacity 10.5 gal 40 L
NOISE LEVEL
Operator ear sound pressure 89 dBA
Sound power 100 dBA
BATTERY
SAE reserve capacity rating 110 min
SAE cold crank @ 0F (-18C) 800 amps
Electrical system 12V

Where to find MINI LOADER SK800 in Detroit

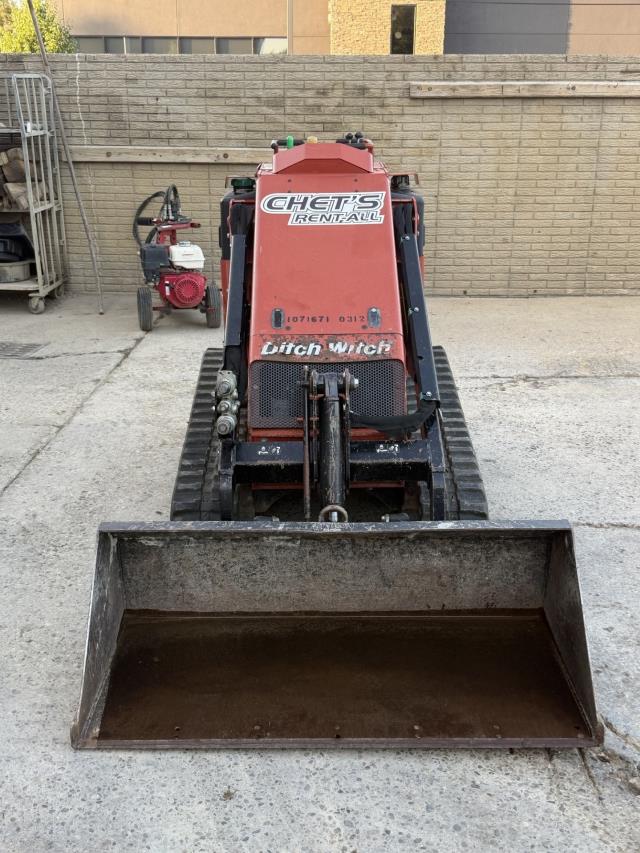

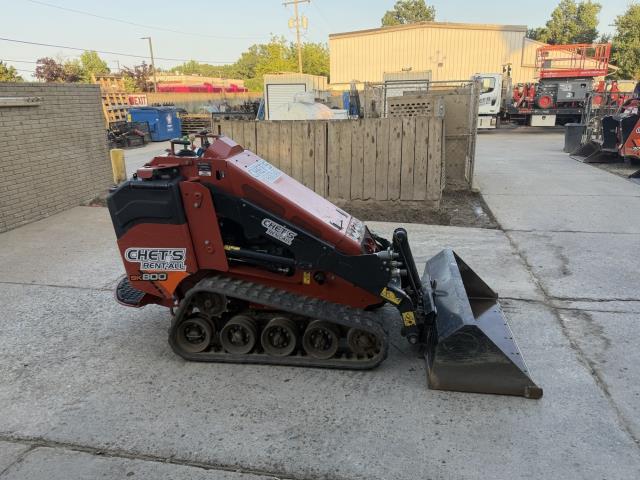

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

* Prices are subject to change.
